GLMs/Logistic Regression/MLE
Sources
- For Logistic Regression: https://yury-zablotski.netlify.app/post/simple-logistic-regression/
- For GLMs and Maximum Likelihood http://web.vu.lt/mif/a.buteikis/wp-content/uploads/PE_Book/5-1-GLM.html
- A Course on GLMs https://statmath.wu.ac.at/courses/heather_turner/glmCourse_001.pdf
- GLM notes https://grodri.github.io/glms/notes/c3.pdf, https://grodri.github.io/glms/notes/a2.pdf
- GLM textbook https://www.jstor.org/stable/pdf/2991772.pdf?refreqid=excelsior%3A8635ba4f19e54f467807e4f8bff1bc40&ab_segments=&origin=&initiator=&acceptTC=1
- Inference versus prediction https://www.stat.berkeley.edu/~aldous/157/Papers/shmueli.pdf
- Algebraic properties of expectations https://www.stat.cmu.edu/~cshalizi/mreg/15/lectures/01/lecture-01.pdf
- https://www.stat.cmu.edu/~cshalizi/uADA/19/lectures/2019-03-07.html
- Fisher Scoring (i.e. fitting GLMs) from scratch http://www.jtrive.com/estimating-logistic-regression-coefficents-from-scratch-r-version.html
Logistic Regression Basics
Logistic Regression is used for modeling data with a categorical response.
Logistic regression predicts the probability of success.
We use it when using OLS is inappropriate because the data the outcome variable is binary.
$$\text{response} \Leftrightarrow \text{log(odds)} \Leftrightarrow \log\bigr(\frac{p}{1-p}\bigl) = \beta_0 + \beta_1X_1+\dots +\beta_k X_k $$
A Primer/Refresher on Probability, Odds, Odds Ratios
Probability = something happening / (something happening + something not happening)
Odds = something happening / something not happening
Log(Odds) = Log(something happening / something not happening)
Log(Odds) = log(p / (1-p)) = logit!
Odds ratio = odds of one thing / odds of another thing (e.g., 4/3 / 15/20 )
- If event 1 has a p probability of success and event 2 has a q probability of success then the odds ratio is $\frac{\frac{p}{1-p}}{\frac{q}{1-q}}$. The odds-ratio tells us how many times are one odds differ from the other. Note that you can’t directly translate odds ratios to probability without knowing the probability of one of the events!
In summary, probability is bounded between 0 and 1. Odds can take any value between 0 and $\infty$, with 1 in the “middle” splitting all the possible odds into two segments. A small segment of odds, from 0 to 1, shows higher probability of failure then of success. And an (literally) infinite segment of odds, from 1 to $\infty$, shows higher probability of success then of failure. Such asymmetry is very odd and difficult to interpret. That is why we need the logarithm of odds. Log odds goes from $-\infty$ to $\infty$.
Suppose an event has a probability of 50% of happening. So p = 1/2. Then the odds are 1/2 / 1/2 = 1/1 or 1:1. The log odds are log(1/1) = 0. Think of these values as the middles.
If the probability is greater than 50%, then the odds are greater than 1, and the log odds are greater than 0.
Converting To Probability
$$\text{Odds} = p / (1-p)$$
$$p = \text{Odds} / (1 + \text{Odds} ) $$ $$\text{logit = log(odds) = log}(\frac{p}{1-p})$$ So, to convert from log odds to probability, we use the following formula:
$$p = \frac{e^{\text{log odds}}}{1 + e^{\text{log odds}}}$$
Example
Suppose we have odds of 20:1. 20:1 odds mean for every 20 successes you’ll get 1 failure.
What is the probability of success?
The probability of success is odds/(1 + odds) $\rightarrow$ (20/1)/(1+20/1) = 20/21 = 0.95
Suppose we have log odds of 1.609438 (i.e. log(5)).
What is the probability of success?
exp(1.609438) / (1 + exp(1.609438)) = 0.83
Summary of Log-Odds
Logistic regression uses log odds because they are:
Symmetric, as compared to odds
Centered around zero as compared to odds or probabilities, which makes their sign (+/-) interpretable
Linear and infinite, as compared to probabilities, which is highly non-linear and is constrained between 0 and 1
Can be easily transformed to odds or probabilities which are easier to understand
Logit model
Logistic regression uses a logit $\log(\frac{p}{1-p})$ to model a linear combination of predictors, which produces a straight line of log(odds). (That is, like linear regression, logistic regression fits a straight line/plane/hyperplane - called a decision boundary in machine learning). This line maximizes the likelihood of the coefficients given the data.
How do we do this?
We start with the following model: $y/\text{response} \rightarrow \text{Log}(\text{odds}) = \text{Log}(\frac{p}{1-p}) = \beta_0 + \beta_1 X_1$ where $p = \frac{e^{X\beta}}{1+e^{X\beta}} = \frac{1}{1+e^{-X\beta}}$
In the bivariate case (i.e. one response and one predictor), these probabilities are the likelihoods of the observed predictor-values (i.e. X’s) after their projection from the x-axis onto the log(odds) and then onto the s-curve.
- Why log odds? “The probabilities can be expressed in the form of lod-odds. We need log-odds because they are linear instead of s-curvy (and our estimation procedure - glm - doesn’t estimate curves). Thus, since the probability is just a transformation of the log-odds, we could build a linear model (with intercept and slope) around the log-odds, and then re-express log-odds in terms of probabilities if needed.”
The log-odds line does a great job in modelling the outcome/y. However, it’s hard to directly interpret (i.e. what does a log odds of 0.5 mean to you?). This is why we need predicted probabilites to interpret the results! - If the log odds = 0.5, we can convert that to probabilities in the following way: Suppose log(p/(1-p)) = 0.5. Then p = exp(0.5) / (1 + exp(0.5)) = 62 percentage points. This is intuitive!
In sum, a straight lod-odds line is making a good job in modelling the outcome variable, while it does a bad job in explaining what does a particular predictor value means for the outcome. So, to make it interpretable, we transform the log odds into probabilities. Since we can’t model the probability directly we need the lod-odds for modelling, and probabilities for reporting the results.
(Note ``Likelihood is the hypothetical probability that an event that has already occurred would yield a specific outcome. The concept differs from that of a probability in that a probability refers to the occurrence of future events, while a likelihood refers to past events with known outcomes." https://mathworld.wolfram.com/Likelihood.html. A likelihood function L(a) is the probability or probability density for the occurrence of a sample configuration $x_1, …, x_n$ given that the probability density f(x;a) with parameter a is known, $L(a)=f(x_1;a)…f(x_n;a)$ )
See: - https://yury-zablotski.netlify.app/post/how-logistic-regression-works/
Show the difference between log odds and probability
#https://bookdown.org/pdr_higgins/rmrwr/logistic-regression-and-broom-for-tidying-models.html
#performance::check_model(m, panel = F)
# add predictions to the original data
# visualize log-odds and probabilities to see their connection
m <- glm(formula = am ~ mpg, data = mtcars, family = binomial())
# add predictions to the original data
mtcars <- mtcars %>%
mutate(log_odds = predict(m),
# below you also could have used plogis(predict(m))
# if we use predict(m) without specifying type, we get logit (log(p/(1-p)))
preds_prob = predict(m, type = "response"),
odds = preds_prob / (1-preds_prob))
# visualize log-odds and probabilities to see their connection
ggplot(mtcars)+
geom_point(aes(mpg, am), color = "orange")+
geom_point(aes(mpg, preds_prob))+
geom_line(aes(mpg, preds_prob))+
geom_point(aes(mpg, log_odds), color = "blue")+
geom_line(aes(mpg, log_odds), color = "blue")+
# geom_point(aes(mpg, odds), color = "darkgreen")+
# geom_line(aes(mpg, odds), color = "darkgreen")+
geom_vline(xintercept = 21.5, linetype = "dotted")+
geom_hline(yintercept = 0.5, linetype = "dotted")+
theme_minimal()
#performance::check_model(m)
The plot above provides a good explanation of what’s going on. We start with the orange dots – these are the original (x,y) pairs. Notice how all of the dots are in the same x space - the entire point of this plot (and of logistic regression), is translating those orange dots - the original y’s or 0/1’s - into probabilities via logistic odds. We do that in two steps - first we turn the orange dots into log(odds) using a generalized linear model (i.e we project them onto the blue line). Then we take those log odds and transform them into predicted probabilities.
In sum:
- The orange dots are the original data – the (x,y) pairs
- The blue line is a transformation of the dots into log odds from the logit model
- The black line are the predicted probabilities from the logit model (i.e. $\frac{e^{\text{log odds}}}{1 + e^{\text{log odds}}}$)

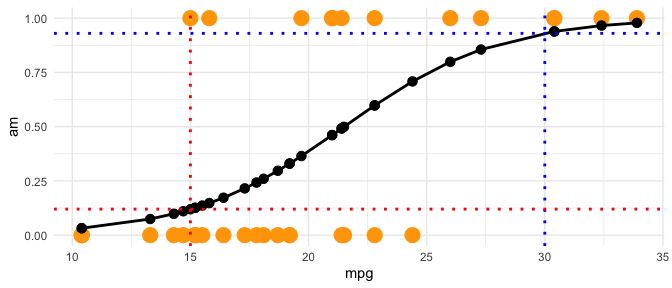

Zooming in what we want, for $\hat{y}$ and $\hat{\beta}$ tasks, is the S-curve. The interpretation is as easy as this: if the car has an mpg of 30 there is a 93% probability (dotted blue lines), that it has a manual transmission, while low mpg, of let’s say 15 (dotted red lines), shows only 12% probability of this car to have a manual transmission.
ggplot(mtcars)+
geom_point(aes(mpg, am), color = "orange", size = 5)+
geom_point(aes(mpg, preds_prob), size = 3)+
geom_line(aes(mpg, preds_prob), size = 1)+
geom_hline(yintercept = 0.93, linetype = "dotted", color = "blue", size = 1)+
geom_vline(xintercept = 30, linetype = "dotted", color = "blue", size = 1)+
geom_hline(yintercept = 0.12, linetype = "dotted", color = "red", size = 1)+
geom_vline(xintercept = 15, linetype = "dotted", color = "red", size = 1)+
theme_minimal()
Logit Assumptions/What Happens When Violated/How to Check
What do we need to assume to use a logit model?
- No dependent observations. “The assumption that the response variables $y_1, . . . , y_n$ are independent is, however, too strong. In many applications, these variables are observed on nodes of a network, or some spatial or temporal domain, and are dependent. Examples abound in financial and meteorological applications, and dependencies naturally arise in social networks through peer effects, whose study has recently exploded in topics as diverse as criminal activity (see e.g. [24]), welfare participation (see e.g. [2]), school achievement (see e.g. [36]), participation in retirement plans [18], and obesity (see e.g. [39, 11]).
(Consequences) If this is violated then $E(Y_{ij} | X_i)$ won’t be correct - so you’re not estimating a population mean! If violated, GLMM - generalized linear mixed effect models should be applied.
See: - https://faculty.washington.edu/heagerty/Courses/b571/handouts/LM-WLS+EDA.pdf
- https://yury-zablotski.netlify.app/post/mixed-effects-models-4/
- http://people.csail.mit.edu/costis/dependent-regression.pdf
(Checking) No formal test that I can find. So you have to think about the data!
(What to do) GLMM or this procedure http://people.csail.mit.edu/costis/dependent-regression.pdf
- No multicollinearity among predictors.
(Consequences) The betas aren’t interpretable. This is a problem for explaining - not for prediction. $\beta_1$ and $\beta_2$ could be 10 and 0, or 5 and 5, or 7 and 3, since that would yield the same result p (which is $\frac{1}{1+e^{logit}}$, and therefore the same error. That is why you generally do not want to use data that is multicollinear. Therefore you could call a model that does not have collinearity a ‘better’ model.
On the other hand, when we’re focused on predicting the ‘p’ as we would be for machine learning/predictive modeling, it does not matter that we can’t interpret the betas. What matters is that ‘p’ is as close to the true ‘p’ as possible.
(Checking) This can be checked with Variation Inflation Factor (VIF). If VIF of any variable is above 5, be concerned and find out which two variables have similar information.
- No influential values (extreme values or outliers) in the continuous predictors.
(Consequences) The betas are incorrect/distorted
(Checking) This can be assessed by converting the continuous predictors to standardized scores, and removing values below -3.29 or greater than 3.29.
See: - https://us.sagepub.com/sites/default/files/upm-assets/17840_book_item_17840.pdf
- Linear relationship between continuous predictor variables and the logit of the outcome
(Consequences) The model describes your data poorly. You can have non linear variables but they must be transformed so as to be linearly related to your outcome.
(Checking) This can be checked using two plots - one making sure the predictors are linear and looking at a QQ plot of the residuals because ``an interesting property of Standardized Pearson Residuals is that they have an approximate Standard Normal distribution if the model fits (Agresti, 2002)”
m <- glm(am~mpg+drat, mtcars, family = binomial())
# linear in the predictors
mtcars %>%
dplyr::select(mpg, drat) %>%
mutate(log_odds = predict(m)) %>%
pivot_longer(-log_odds) %>%
ggplot(aes(log_odds, value))+
geom_point()+
geom_smooth(method = lm)+
facet_wrap(~name)+
theme_minimal()

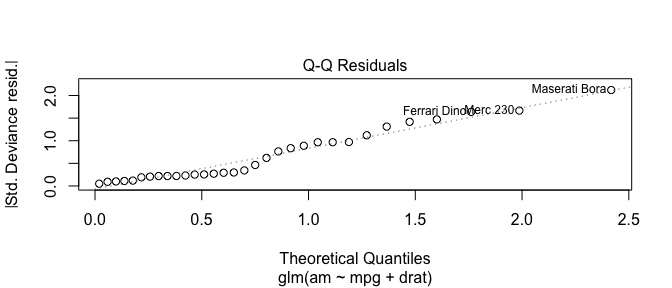

# QQ plot
plot(m, which = 2)
See:
- https://www.lexjansen.com/scsug/2018/Shreiber-Gregory-SCSUG2018-Assumption-Violations.pdf
- https://faculty.washington.edu/heagerty/Courses/b571/handouts/LM-WLS+EDA.pdf
- https://stats.stackexchange.com/questions/32285/assumptions-of-generalised-linear-model
Generalized Linear Models (GLMs)
Logits are a type of generalized linear models (GLMs). Generalized linear models (GLMs) (McCullagh and Nelder 1989) extend the linear regression model so as to accommodate binary and count dependent variables.
In a Generalized Linear Model, the response may have any distribution from the exponential family, and rather than assuming the mean is a linear function of the explnatory variables, we assume that a function of the mean, or the link function, is a linear function of the explnatory variables. http://www.jtrive.com/estimating-logistic-regression-coefficents-from-scratch-r-version.html
Maximum likelihood is asymptotically efficient, meaning that its parameter estimates converge on the truth as quickly as possible https://www.stat.cmu.edu/~cshalizi/mreg/15/lectures/06/lecture-06.pdf
An important practical feature of generalized linear models is that they can all be fit to data using the same algorithm, a form of iteratively re-weighted least squares.
There are three components to a GLM:
Random Component – refers to the probability distribution of the response variable (Y); e.g. binomial distribution for Y in the binary logistic regression.
Systematic Component – refers to the explanatory variables $(X_1, X_2, … X_k)$ as a combination of linear predictors - e.g. $\beta_0 + \beta_1x1 + \beta_2x2$
Link Function, $\eta$ or $g(\mu)$ – The link function relates the linear predictor to some parameter ($\theta$) of the distribution for Y (usually the mean). Let $g(·)$ be the link function and let $E(Y) = \theta$ be the mean of distribution for $Y$.
The link function specifies the link between random and systematic components. It says how the expected value of the response relates to the linear predictor of explanatory variables; e.g. $\eta = \text{logit}(p)$ for logistic regression. I.e. it transforms the dependent variable into a linear combination of the independent variables.
How to Get Coefficients and Errors for a GLM
- Specify a distribution for Y. I.e. assume our data was generated
from some distribution:
- Continuous and Unbounded: Normal
- Binary: Bernoulli
- Event Count: Poisson
- Duration: Exponential
- Ordered Categories: Normal with observation mechanism
- Unordered Categories: Multinomial
- Specify a linear predictor
- We are interested in allowing some parameter of the distribution $\theta$ to vary as a (linear) function of covariates. So we specify a linear predictor.
- i.e. $X\beta = \beta_0 + x_1\beta_1+x_2\beta_2+\dots+x_n\beta_n$
- Specify a link function
- The link function relates the linear predictor to some parameter $\theta$ of the distribution for Y (usually the mean).
- $g(\theta)=X\beta$
- $\theta = g^{-1}(X\beta)$
- Together with the linear predictor this forms the systematic component
- For logistic regression the link is
$\ln\frac{\pi}{1-\pi}=X\beta$
- This means the inverse link is $\pi = \frac{1}{1+e^{-X\beta}}$
- Estimate Parameters via Maximum Likelihood
- We do this in three steps:
- Writing down the likelihood
- Estimating the parameters by maximizing the likelihood
- Getting an estimate of the variance by inverting the negative Hessian
- We do this in three steps:
- Simulate or Calculate Quantities of Interest
Example: Logit
Binary Logistic regression models how the odds of “success” for a binary response variable Y depend on a set of explanatory variables: $\text{logit}(p) = \text{log}(\frac{p}{1-p})=\beta_0 + \beta_1 x_i$
Specify a distribution for Y. I.e. specify the stochastic/random component. The distribution of the response variable is assumed to be binomial with a single trial and success probability p
- $Y_i \sim \text{Bernoulli}(y_i|\pi_i) = \pi^{y_i}(1-\pi_i)^{1-y_i}$
- The above implies that $Y_i = \pi_i$ for y = 1 and $1-\pi_i$ for y = 0
Specify a linear predictor / systematic component. Here we note that the explanatory variable (can be continuous, discrete, or both) is linear in the parameters $\beta_0 + \beta x_i$
- $X_i\beta$
Specify a link function
- $Pr(Y_i = 1|\beta) \equiv E(Y_i) \equiv \pi_i = \frac{1}{1 + e^{-x_i\beta}}$
- We’re assuming $Y_i$ and $Y_j$ are independent conditional on X.
- We can use different link functions - for example, for probit it’s $\Phi(X\beta)$ – the CDF of the standard normal distribution
Derive maximum likelihood estimate for $\beta$ $$l(\beta|Y) = \log L(\beta|Y_i)$$ $$= \log p(Y_i|\beta)$$ $$= \log \prod_{i=1}^n \underbrace{p(Y_i|\beta)}{\text{Replace with dist. of Y - bernoilli for binary}}$$ $$= \log \prod{i=1}^n \underbrace{\pi_i^{y_i}(1-\pi_i)^{1-y_i}}{\text{Replace }\pi_i \text{ with link function}}$$ $$= \log \prod{i=1}^n \underbrace{\frac{1}{1 + e^{-x_i\beta}}^{y_i}(1-\frac{1}{1 + e^{-x_i\beta}})^{1-y_i}}_{\text{Now use log rules to simplify}}$$
$$ = \sum_{i=1}^n y_i \log (\frac{1}{1 + e^{-x_i\beta}}) + (1-y_i) \log (1-\frac{1}{1 + e^{-x_i\beta}})$$ $$ = \sum_{i=1}^n -y_i \log ({1 + e^{-x_i\beta}}) + (1-y_i) \log (1-\frac{1}{1 + e^{-x_i\beta}})$$ $$ = - \sum_{i=1}^n \log (1+ e^{(1-2y_i)x_i\beta})$$
The above cannot be maximized analytically (i.e. by taking the derivative with respect to $\beta$, setting the equation to 0, and solving). So we use a numeric approximation - in R it’s Fischer scoring.
Example: OLS with canonical link
Note, this is just regular OLS!
- Specify a distribution for Y. I.e. specify the sthocastic/random
component. The distribution of the response variable is assumed to
be binomial with a single trial and success probability p
- $Y_i \sim \text{N}(X\beta, \sigma^2)= \frac{1}{\sigma(2\pi)^{1/2}}\text{exp}(\frac{y_i-\mu}{2\sigma^2})$
- Specify a linear predictor / systematic component. Here we note that
the explanatory variable (can be continuous, discrete, or both) is
linear in the parameters $\beta_0 + \beta x_i$
- $\beta’X$
- Specify a link function
- identity link $\mu = \beta’X$
- Note we’re going to replace the $\mu$ in 1 above with $X\beta$
- Derive maximum likelihood estimate for $\beta$
Likelihood $L = \prod_{i=1}^{n} = \frac{1}{\sigma\sqrt{2\pi}}\text{exp}(\frac{y_i-\mu}{2\sigma^2})$
Now replace $\mu$ with $\beta’X$ $$L = \prod_{i=1}^{n} \frac{1}{\sigma\sqrt{2\pi}}\text{exp}(\frac{(y_i-\beta’x_i)^2}{2\sigma^2}) $$ Take logs $$\log(L) = \sum_{i=1}^{n} \log(\frac{1}{\sigma\sqrt{2\pi}}) + \log(\text{exp}(\frac{(y_i-\beta’x_i)^2}{2\sigma^2})) $$ Use log rules to simplify
$$\log(L) = \sum_{i=1}^{n} -\log(-\sigma\sqrt{2\pi}) + (\frac{(y_i-\beta’x_i)^2}{2\sigma^2}) $$ Now we want to find $\beta$, let’s make this easier by replacing $\sum (y_i-\beta’x_i)^2$ with $(Y-X\beta)’(Y-X\beta)$
$$\log(L) = -n\log(-\sigma\sqrt{2\pi}) + \frac{1}{2\sigma^2}\times(Y-X\beta)’(Y-X\beta) $$ Now we can take the partial with respect to it, set it equal to 0, and solve
$$\frac{\partial l}{\partial \beta} = \frac{1}{2\sigma^2} \times (-2 X’Y + 2 \beta X’X) = 0$$ Now, solve like normal $$\beta = (X’X)^{-1}X’Y$$
Example: Probit
- Specify a distribution for Y. I.e. specify the stochastic/random
component. The distribution of the response variable is assumed to
be binomial with a single trial and success probability p
- $Y_i \sim \text{Bernoulli}(y_i|\pi_i) = \pi^{y_i}(1-\pi_i)^{1-y_i}$
- The above implies that $Y_i = \pi_i$ for y = 1 and $1-\pi_i$ for y = 0
- Specify a linear predictor / systematic component. Here we note that
the explanatory variable (can be continuous, discrete, or both) is
linear in the parameters $\beta_0 + \beta x_i$
- $X_i\beta$
- Specify a link function
- $Pr(Y_i = 1|\beta) \equiv E(Y_i) \equiv \pi_i = \Phi(X\beta)$ – the CDF of the standard normal distribution
- We’re assuming $Y_i$ and $Y_j$ are independent conditional on X.
- Derive maximum likelihood estimate for $\beta$
$$L = \pi^{y_i}(1 - \pi)^{1-y_i} $$ $$\log(L) = \sum\Phi(X\beta)^{y_i}(1-\Phi(X\beta))^{1-y_i} $$ For just optim, we can stop here $$\log(L) = \sum y_i \log \Phi(X\beta) + (1-y_i) \log (1-\Phi(X\beta)) $$
Coding Probit, Logit
# get link functions for ols, logit, probit
ll.logit <- function(beta,y=y, X=X){
logl <- -1 * sum(log(1 + exp((1-2*y)*X%*%beta)))
return(logl)
}
ll.probit <- function(beta, y=y, X=X){
phi <- pnorm(X%*%beta, log = TRUE)
opp.phi <- pnorm(X%*%beta, log = TRUE, lower.tail = FALSE)
logl <- sum(y*phi + (1-y)*opp.phi)
return(logl)
}
X <- model.matrix(~ mpg + wt, data = mtcars)
opt.logit <- optim(par = rep(0, ncol(X)), fn = ll.logit, X = X, y = mtcars$am, control = list(fnscale = -1), hessian = T, method = "BFGS")
opt.probit <- optim(par = rep(0, ncol(X)), fn = ll.probit, X = X, y = mtcars$am, control = list(fnscale = -1), hessian = T, method = "BFGS")
glm(formula = am ~ mpg + wt, data = mtcars, family = binomial(link = "probit"))
Call: glm(formula = am ~ mpg + wt, family = binomial(link = "probit"),
data = mtcars)
Coefficients:
(Intercept) mpg wt
13.5226 -0.1649 -3.4088
Degrees of Freedom: 31 Total (i.e. Null); 29 Residual
Null Deviance: 43.23
Residual Deviance: 17.46 AIC: 23.46
glm(formula = am ~ mpg + wt, data = mtcars, family = binomial(link = "logit"))
Call: glm(formula = am ~ mpg + wt, family = binomial(link = "logit"),
data = mtcars)
Coefficients:
(Intercept) mpg wt
25.8866 -0.3242 -6.4162
Degrees of Freedom: 31 Total (i.e. Null); 29 Residual
Null Deviance: 43.23
Residual Deviance: 17.18 AIC: 23.18

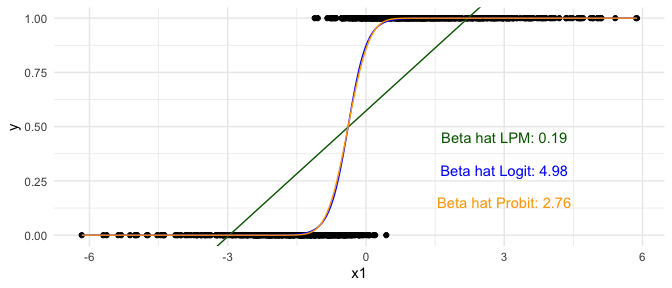

Comparing LPM, Probit, Logit
So how do a linear probability model, logit and probit compare? See the following illustration where the lpm is in green, the logit is in blue, and the probit is in orange.
library(latex2exp)
#simulate data - start with random x
# see https://data.library.virginia.edu/simulating-a-logistic-regression-model/
x1 <- rnorm(1000, 0, 2)
# now make the "true" model
xb <- 2 + 5 * x1
# convert to probability, so we can simulate probabilities in the next step and have them be related to the betas
p <- 1/(1+ exp(-xb))
# now draw 0/1's based on the data above
y <- rbinom(n = 1000, size = 1, prob = p)
sim_data <- tibble(
y = y,
x1 = x1
)
# run the models
logit_ex <- glm(y ~ x1, data = sim_data, family = binomial(link = "logit"))
probit_ex <- glm(y ~ x1, data = sim_data, family = binomial(link = "probit"))
lpm_ex <- lm(y~x1, data = sim_data)
sim_data %<>%
mutate(
logit_preds_prob = predict(logit_ex, type = "response"),
probit_preds_prob = predict(probit_ex, type = "response"),
)
# now plot all
ggplot(sim_data, aes(x = x1, y = y)) +
geom_point() +
# add lpm
geom_abline(slope = lpm_ex$coefficients[2], intercept = lpm_ex$coefficients[1], color = "darkgreen") +
geom_line(aes(x = x1, y = logit_preds_prob), color = "blue")+
geom_line(aes(x = x1, y = probit_preds_prob), color = "orange") +
annotate(geom="text", x=3, y=0.45, label = c(paste("Beta hat LPM:", round(lpm_ex$coefficients[2],2))), color="darkgreen") +
annotate(geom="text", x=3, y=0.30, label = c(paste("Beta hat Logit:", round(logit_ex$coefficients[2],2))), color="blue") +
annotate(geom="text", x=3, y=0.15, label=c(paste("Beta hat Probit:", round(probit_ex$coefficients[2],2))), color="orange") + theme_minimal()
What do we get from the above?
- LPM goes outside of [0, 1] for extreme values of $X_i$
- LPM underestimates the marginal effect near center and overpredicts near extremes
- Logit has slightly fatter tails than probit, but no practical difference
- Note that $\hat{\beta}$ are completely different between the models
GLM properties
- It’s the minimum variance unbiased estimator (MVUE)
- Invariance to reparameterization
- You can estimate $\sigma$ with $\hat{\sigma}$ and calculate $\hat{\sigma^2}$ or estimate $\hat{\sigma^2}$ and both are Maximum Likelihood Estimates
- Invariance to sampling plans
Asymptotic GLM properties
- Consistency (from the Law of Large Numbers). As $n \rightarrow \infty$, the sampling distribution of the MLE collapses to a spike over the parameter value
- Asymptotic normality
- as $n \rightarrow \infty$ the distribution of MLE / se(MLE) converges to a Normal
- Asymptotic efficiency (i.e. minimum asymptotic variance)
Maximum Likelihood/Getting to the Logit Model
Why use it? There is no analytical solution to solve for the coefficients in a logit model.
Logarithm Review
- log(A × B) = log(A) + log(B)
- log(A/B) = log(A) − log(B)
- log(Ab) = b × log(A)
- log(e) = ln(e) = 1
- log(1) = 0
How do we get to that point?
- We can model $Y_i$ via a generalized linear model with a link function. (NOTE: THE LINK FUNCTION IS CRITICAL!) I.e. $$g(E[Y_i|X_i])=g(u_i)=X_i\beta = \beta_0 + \beta_1 X_{1i} … $$
This means that the conditional mean is $$E[Y|X] = 1 \times p E[Y=1|X_i] +0 \times p E[Y=0|X_i]= 1 \times p E[Y=1|X_i] = p_i$$ Remember, we’re dealing with expectations, so we’re dealing with a population.
In order to estimate the probability from our sample, we want to find the link function for $p_i=\mu_i$
To do this, we notice the following:
Start with $L(\beta|Y=y,X=x) = \prod_{i=1}^n P(Y_i = y_i|X=x_i, \beta)$
- We’re going to assume the $Y_i$ as a Bernoulli random variable
https://mathworld.wolfram.com/MaximumLikelihood.html https://www.stat.cmu.edu/~cshalizi/uADA/12/lectures/ch12.pdf
Fisher Scoring - Iteratively Solving for Parameters
getCoefficients <- function(design_matrix, response_vector, epsilon=.0001) {
# =========================================================================
# design_matrix `X` => n-by-(p+1) |
# response_vector `y` => n-by-1 |
# probability_vector `p` => n-by-1 |
# weights_matrix `W` => n-by-n |
# epsilon => threshold above which iteration continues |
# =========================================================================
# n => # of observations |
# (p + 1) => # of parameterss, +1 for intercept term |
# =========================================================================
# U => First derivative of Log-Likelihood with respect to |
# each beta_i, i.e. `Score Function`: X_transpose * (y - p) |
# |
# I => Second derivative of Log-Likelihood with respect to |
# each beta_i. The `Information Matrix`: (X_transpose * W * X) |
# |
# X^T*W*X results in a (p+1)-by-(p+1) matrix |
# X^T(y - p) results in a (p+1)-by-1 matrix |
# (X^T*W*X)^-1 * X^T(y - p) results in a (p+1)-by-1 matrix |
# ========================================================================|
X <- as.matrix(design_matrix)
y <- as.matrix(response_vector)
# initialize logistic function used for Scoring calculations =>
# this is the probability at point v on the s-curve
pi_i <- function(v) return(exp(v)/(1 + exp(v)))
# initialize beta_0, p_0, W_0, I_0 & U_0 =>
beta_0 <- matrix(rep(0, ncol(X)), nrow=ncol(X), ncol=1, byrow=FALSE, dimnames=NULL)
# initialize probability (at 1/2 - because all the x's are at zero and epx(0)/(1+exp(0))=0.5)
p_0 <- pi_i(X %*% beta_0)
# here diag() turns a vector into a matrix where only the diagonals have a value
W_0 <- diag(as.vector(p_0*(1-p_0)))
# information matrix used in fischer scoring
I_0 <- t(X) %*% W_0 %*% X
# U is the vector of first-order partial derivatives of the Log-Likelihood function
U_0 <- t(X) %*% (y - p_0)
# initialize variables for iteration =>
beta_old <- beta_0
iter_I <- I_0
iter_U <- U_0
iter_p <- p_0
iter_W <- W_0
fisher_scoring_iterations <- 0
# iterate until difference between abs(beta_new - beta_old) < epsilon =>
while(TRUE) {
# Fisher Scoring Update Step =>
fisher_scoring_iterations <- fisher_scoring_iterations + 1
beta_new <- beta_old + solve(iter_I) %*% iter_U
if (all(abs(beta_new - beta_old) < epsilon)) {
model_parameters <- beta_new
fitted_values <- pi_i(X %*% model_parameters)
covariance_matrix <- solve(iter_I)
break
} else {
iter_p <- pi_i(X %*% beta_new)
iter_W <- diag(as.vector(iter_p*(1-iter_p)))
iter_I <- t(X) %*% iter_W %*% X
iter_U <- t(X) %*% (y - iter_p)
beta_old <- beta_new
}
}
summaryList <- list(
'model_parameters'=model_parameters,
'covariance_matrix'=covariance_matrix,
'fitted_values'=fitted_values,
'number_iterations'=fisher_scoring_iterations
)
return(summaryList)
}
getCoefficients(design_matrix = cbind(1, mtcars[,c("mpg","cyl")]), response_vector = mtcars[,c("am")], epsilon = 0.00001)
$model_parameters
[,1]
1 -8.7620273
mpg 0.3650051
cyl 0.1656727
$covariance_matrix
1 mpg cyl
1 47.497321 -1.41755844 -3.13983099
mpg -1.417558 0.04512941 0.08539374
cyl -3.139831 0.08539374 0.23730853
$fitted_values
[,1]
Mazda RX4 0.47430139
Mazda RX4 Wag 0.47430139
Datsun 710 0.55546547
Hornet 4 Drive 0.51077756
Hornet Sportabout 0.35181939
Valiant 0.23841303
Duster 360 0.09822771
Merc 240D 0.69142437
Merc 230 0.55546547
Merc 280 0.31866923
Merc 280C 0.21910300
Merc 450SE 0.18991492
Merc 450SL 0.24562965
Merc 450SLC 0.13140770
Cadillac Fleetwood 0.02556600
Lincoln Continental 0.02556600
Chrysler Imperial 0.11194046
Fiat 128 0.97649663
Honda Civic 0.95243013
Toyota Corolla 0.98626984
Toyota Corona 0.43739825
Dodge Challenger 0.14441830
AMC Javelin 0.13140770
Camaro Z28 0.07030074
Pontiac Firebird 0.39447289
Fiat X1-9 0.86591368
Porsche 914-2 0.80071911
Lotus Europa 0.95243013
Ford Pantera L 0.15848203
Ferrari Dino 0.35953299
Maserati Bora 0.12329722
Volvo 142E 0.42843764
$number_iterations
[1] 6
glm(formula = am ~ mpg + cyl, data = mtcars, family = binomial())
Call: glm(formula = am ~ mpg + cyl, family = binomial(), data = mtcars)
Coefficients:
(Intercept) mpg cyl
-8.7620 0.3650 0.1657
Degrees of Freedom: 31 Total (i.e. Null); 29 Residual
Null Deviance: 43.23
Residual Deviance: 29.56 AIC: 35.56
Model Diagnistics
We have a model and now we need to evaluate it.
See:
- https://bstewart.scholar.princeton.edu/sites/g/files/toruqf4016/files/bstewart/files/lecture4_glm_slides.pdf
https://bookdown.org/ltupper/340f21_notes/deviance-and-residuals.html
Response residuals are handy if you want to explain a particular data point to someone who’s not statistically trained, since they’re on a more intuitive scale.
Pearson residuals (and other standardized residuals) are helpful for trying to see if a point is really unusual, since they’re scaled, like z-scores.
Deviance residuals make a lot of sense if you want to be consistent about the math you’re using – they are based on likelihood, and in GLMs, your model fitting is also based on maximum likelihood.
The AIC is a measure of fit that penalizes for the number of parameters p AIC = −2lmod + 2p Smaller values indicate better fit and thus the AIC can be used to compare models (not necessarily nested).
Logit Model Interpretation
The coefficients cannot be interpreted like OLS coefficients. Because a one unit increase in an independent variable is a $\beta$ unit increase in the log odds, interpreting the coefficients as is isn’t a useful exercise. In general we have three options:
- Interpret in percentage terms
- Simulate predicted probabilities
- Interpret in probability terms
The first two options are the most useful. The easiest is the percentage interpretation.
Suppose we had a coefficient of 0.156. We’d interpret that as $\exp(.1563404) = 1.1692241$ means that a one unit increase in x increased the odds of y by 17%.

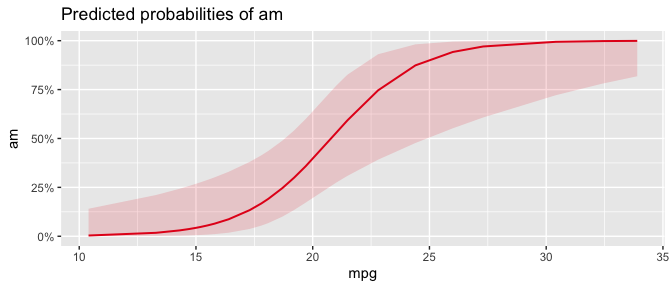

We can simulate predicted probabilities - essentially what we do is keep the other variables at their means and then simulate the probabilities when a continuous variable is at various values. Here’s a toy example where we’re predicting whether a car has a manual transmission as a function of mpg, quarter mile time, gears, and whether the engine is v shaped
library(tidyverse) # data wrangling and visualization library(knitr) # beautifying tables library(car) # for checking assumptions, e.g. vif etc. library(broom) # for tidy model output library(questionr) # for odds.ratios library(sjPlot) # for plotting results of log.regr. library(sjmisc) # for plotting results of log.regr. library(effects) # for plotting results of log.regr. model_output <- glm(formula = am ~ mpg + vs, data = mtcars, family = "binomial") tibble( variables = model_output %>% tidy() %>% select(term) %>% pull(), log_OR = coef(model_output)) %>% dplyr::bind_cols(confint(model_output)) %>% rename(lower_log_OR = `2.5 %`, upper_log_OR = `97.5 %`) %>% cbind(odds.ratio(model_output)) %>% rename(lower_OR = `2.5 %`, upper_OR = `97.5 %`) %>% mutate(percent_change = ifelse(OR < 1, (1/OR - 1)*-100, (OR - 1)*100 ), lower_percent_change = ifelse(lower_OR < 1, (1/lower_OR - 1)*-100, (lower_OR - 1)*100 ), upper_percent_change = ifelse(upper_OR < 1, (1/upper_OR - 1)*-100, (upper_OR - 1)*100 )) %>% mutate_if(is.numeric, ~round(., 3)) %>% select(variables, log_OR, OR, percent_change, p, everything())variables log_OR OR percent_change p lower_log_OR (Intercept) (Intercept) -9.918 0.000 -2029731.464 0.005 -18.614 mpg mpg 0.536 1.709 70.907 0.006 0.230 vs vs -2.796 0.061 -1537.392 0.058 -6.189 upper_log_OR lower_OR upper_OR lower_percent_change (Intercept) -4.472 0.000 0.011 -1.213715e+10 mpg 1.023 1.258 2.782 2.581700e+01 vs -0.249 0.002 0.779 -4.864118e+04 upper_percent_change (Intercept) -8649.642 mpg 178.168 vs -28.290# show model output using a different package tab_model(model_output, show.ci = F, show.aic = T)am Predictors Odds Ratios p (Intercept) 0.00 0.005 mpg 1.71 0.006 vs 0.06 0.058 Observations 32 R2 Tjur 0.475 AIC 30.944 # We can predict probabilities and plot them plot_model(model_output, type = "pred", terms="mpg[all]")
You can also do predicted probabilities at a point. Mechanically, what we’re doing is $$p = \frac{e^{X\beta}}{1+e^{X\beta}} = \frac{1}{1 + e^{-X\beta}}$$
where $X\beta = \beta_0 + \beta_1 X_1 + \beta_2 X_2 + …$
The problem with this approach is that probabilities are non-linear, so the predicted probability at a particular point may not be the best descriptor.
1/(1+exp(-(-9.9183 + 0.5359 * 25 + -2.7957)))
[1] 0.6645194
These probabilities are then the likelihoods of the observed predictor-values after their projection from the x-axis over the s-curve onto the y-axis
full_participation_2016_m <- glm(np_full_model_formula_2016_m, family = binomial, data = NP, subset = Year.Quarter == 2017.4)
any_c <- glm(any_2012_c, family = binomial, data = NP, subset = Year.Quarter == 2012.4)
any_m <- glm(any_2012_m, family = binomial, data = NP, subset = Year.Quarter == 2012.4)
meetings_2012 <- ggpredict(model = full_participation_2012_m, terms="totrevenue2012[all]", back.transform = T)
meetings_2016 <- ggpredict(model = full_participation_2016_m, terms="totrevenue2012[all]", back.transform = T)
any_meetings <- ggpredict(model = any_m, terms="totrevenue2012[all]", back.transform = T)
# https://stackoverflow.com/questions/74634559/ggeffects-raw-data-loss
p1_c <- ggpredict(model = full_participation_2012_c, terms=c("totrevenue2012[all]","business_league_501c6"), back.transform = T) %>% plot(show.y.title = FALSE, show.title = FALSE) +
scale_x_continuous(
trans = log_trans(),
breaks = c(1e8, 1e9, 1e10, 1e11),
labels = scales::label_dollar(scale_cut = cut_short_scale())) +
xlab("2012 Assets")
p1_m <- ggpredict(model = full_participation_2012_m, terms=c("totrevenue2012[all]","business_league_501c6"), back.transform = T) %>% plot(show.y.title = FALSE, show.title = FALSE) +
scale_x_continuous(
trans = log_trans(),
breaks = c(1e8, 1e9, 1e10, 1e11),
labels = scales::label_dollar(scale_cut = cut_short_scale())) +
xlab("2012 Assets")
p1_c + p1_m
geom_line(data = meetings_2012, aes(y=predicted, x = x), inherit.aes = F, linetype="dashed", color="darkblue") +
geom_ribbon(data = meetings_2012, aes(ymin = conf.low, ymax = conf.high),
alpha=0.1,
linetype="dashed",
color="grey", inherit.aes = F)
Logit in Machine Learning i.e. Classification

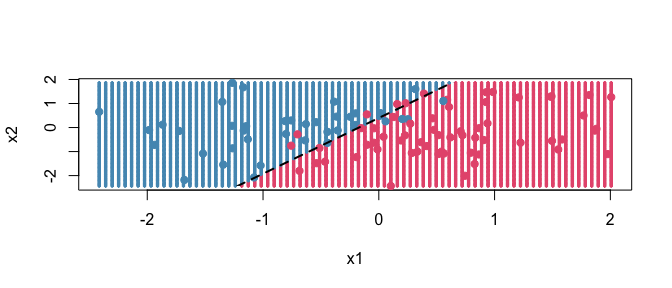

Plotting the Decision Boundary
This is literally plotting the log odds line.
See: - https://quantifyinghealth.com/plot-logistic-regression-decision-boundary-in-r/
x1 = rnorm(100)
x2 = rnorm(100)
# now draw 0/1's based on the data above
xb = 1 + 5 * x1 - 3 * x2
p <- 1/(1+ exp(-xb))
y <- rbinom(n = 100, size = 1, prob = p)
#y = (x1 + x2 + rnorm(50)) > 0
model = glm(y ~ x1 + x2, family = binomial)
# can do y either way
# xb = 1 + 5 * x1 - 3 * x2
# p <- 1/(1+ exp(-xb))
# y_alt = ( 1 + 5 * x1 - 3 * x2 + rnorm(50)) > 0
# model = glm(y_alt ~ x1 + x2, family = binomial)
# Plot decision boundaries
x1_ticks = seq(min(x1), max(x1), length.out=80)
x2_ticks = seq(min(x2), max(x2), length.out=80)
background_grid = expand.grid(x1_ticks, x2_ticks)
names(background_grid) = c('x1', 'x2')
grid_predictions = predict(model,
newdata = background_grid,
type = 'response')
plot(background_grid, pch = 20, cex = 0.5, col = ifelse(grid_predictions > 0.5, '#E75A7C', '#5398BE'))
points(x1, x2, pch = 19, col = ifelse(y == TRUE, '#E75A7C', '#5398BE'))
slope = coef(model)[2]/(-coef(model)[3])
intercept = coef(model)[1]/(-coef(model)[3])
clip(min(x1),max(x1), min(x2), max(x2))
abline(intercept, slope, lwd = 2, lty = 2)
# boundary <- function(model, data, class = NULL, predict_type = "class", resolution = 100, showgrid = TRUE, ...) {
#
# if(!is.null(class)) cl <- data[,class] else cl <- 1
# data <- data[,1:2]
# k <- length(unique(cl))
#
# plot(data, col = as.integer(cl)+1L, pch = as.integer(cl)+1L, ...)
#
# # make grid
# r <- sapply(data, range, na.rm = TRUE)
# xs <- seq(r[1,1], r[2,1], length.out = resolution)
# ys <- seq(r[1,2], r[2,2], length.out = resolution)
# g <- cbind(rep(xs, each=resolution), rep(ys, time = resolution))
# colnames(g) <- colnames(r)
# g <- as.data.frame(g)
#
# ### guess how to get class labels from predict
# ### (unfortunately not very consistent between models)
# p <- predict(model, g, type = predict_type)
# if(is.list(p)) p <- p$class
# p <- as.factor(p)
#
# if(showgrid) points(g, col = as.integer(p)+1L, pch = ".")
#
# z <- matrix(as.integer(p), nrow = resolution, byrow = TRUE)
# contour(xs, ys, z, add = TRUE, drawlabels = FALSE,
# lwd = 2, levels = (1:(k-1))+.5)
#
# invisible(z)
# }
#
# class(model) <- c("lr", class(model))
#
# # specify the cutoff point for prediction
#
# predict.lr <- function(object, newdata, ...)
# predict.glm(object, newdata, type = "response") > .5
#
# df1 <- data.frame(cbind(y, x1, x2))
#
# model = glm(y ~ x1, family = binomial)
# boundary(model = model, data = df1, class = "y", main = "Logistic Regression")
Appendix
Going from odds to probability
Proof that odds / (1 + odds) = p
$$\text{Odds} / (1 + \text{Odds} ) = \frac{p/(1-p)}{1+p/(1-p)} = \frac{p/(1-p)}{1/(1-p)}= \frac{p*(1-p)}{(1-p)*1} = p$$
https://www.r-bloggers.com/2021/05/how-to-generate-correlated-data-in-r/
General GLM Properties
A GLM needs the following elements:
A linear predictor: $\eta = X \beta$ (So $\eta$ is n x 1). This is the systematic component from above.
A link function, g, which describes how the mean of the process Y depends on the linear predictor: $$E[Y] = \mu = g^{-1}(\eta) = g^{-1}(X\beta)$$
The link function is the key to GLiMs: since the distribution of the response variable is non-normal, it’s what lets us connect the structural component to the response–it ’links’ them (hence the name) https://stats.stackexchange.com/questions/20523/difference-between-logit-and-probit-models/30909#30909. In other words, a link function that relates the linear predictor to a parameter of the distribution (systematic component).
- A variance function, V, and a dispersion parameter, $\phi$, which describes the variance of the process. This is the random component (stochastic component) from above.
$$Var(Y) = \phi V(u) = \phi V(g^{-1}(X\beta))$$ To use a GLM, we need to satisfy the following assumptions:
The relationship between the dependent and independent variables may be non-linear
The dependent variable can have a non-normal distribution
In order to estimate the unknown parameters, the maximum likelihood estimation method need to be applied
The errors are independent but can have a non-normal distribution
GLMs and Exponential Distributions
In a GLM, each $Y_i$ is assumed to be generated from a particular distribution in the exponential family, where the probability density function (pdf) is written as:
$$f(y_i) = \text{exp}(\frac{y_i b\theta_i}{a_i(\phi)} + c_i(y_i,\phi)) $$ where:
- $\theta_i$ is the location (i.e. mean) parameter;
- $\phi$ is the scale (standard deviation);
- $a_i(.)$, $b(.)$, and $c_i(.)$ are known functions
If $Y_i$ has a distribution from the exponential family: - $E[Y_i] = \mu_i = b’(\theta_i)$ - $Var[Y_i] = \sigma_i = b’’(\theta_i) a_i(\phi)$
Suppose we have a normal distribution: $$\frac{1}{\sqrt{2\pi\sigma^2}}e^{\frac{-1}{2}\frac{(y_i-u_i)^2}{\sigma^2}}$$
We can replace the $(y_i-u_i)^2$ with $y_i^2+u_i^2-2u_iy_i$
So, now we have $$\frac{1}{\sqrt{2\pi\sigma^2}}e^{\frac{-1}{2}\frac{y_i^2+u_i^2-2u_iy_i}{\sigma^2}}$$
To make this into the exponential form for GLM, rearrange the terms:
$$\text{exp}(\frac{y_iu_i-\frac{1}{2}u_i^2}{\sigma^2}-\frac{y_i}{2 \sigma^2}-\frac{1}{2}\text{log}(2\pi\sigma^2)) $$
Now we can bring this into GLM form using the following expressions:
$\theta_i$ is the location (i.e. mean) parameter - $\mu_i$
$\phi$ is the scale (standard deviation) - $\sigma^2$
$a_i(\phi) = \phi$
$b(\theta) = \frac{1}{2}\theta^2$
$c_i(y_i,\phi)= \frac{y_i}{2 \sigma^2}-\frac{1}{2}\text{log}(2\pi\sigma^2)$
$E[Y_i] = \mu_i = b’(\theta_i) = \theta_i = \mu$
$Var[Y_i] = \sigma_i = b’’(\theta_i) a_i(\phi) = 1 \times \phi = \sigma^2$
Sources http://web.vu.lt/mif/a.buteikis/wp-content/uploads/PE_Book/5-1-GLM.html https://grodri.github.io/glms/notes/a2.pdf https://online.stat.psu.edu/stat504/lesson/beyond-logistic-regression-generalized-linear-models-glm
Link Functions
The link function can be though of as a transformation of $E(Y)$ which links the actual values of Y to their estimated counterparts in an econometric model. In other words, tt relates the linear predictor to some parameter $\theta$ of the distribution for Y (usually the mean).
Link functions - $g(⋅)$ - is a one-to-one continuous differentiable transformation of $\eta_i = g(\mu_i)$ then the function $g(\mu_i)$ is called a link function.
GLMs assume that the transformed mean follows a linear model: $\eta_i = X_i\beta$
Staying with Logistic Regression, suppose
$Y_i ∼ \text{Binomial}(n_i, p_i)$ and we wish to model the proportions $Y_i/\eta_i$ . Then E(Yi/ni) = pi var(Yi/ni) = 1 ni pi(1 − pi) So our variance function is V (µi) = µi(1 − µi) Our link function must map from (0, 1) → (−∞, ∞). A common choice is g(µi) = logit(µi) = log µi 1 − µi
Sources - https://statmath.wu.ac.at/courses/heather_turner/glmCourse_001.pdf
Let g(·) be the link function and let E(Y ) = θ be the mean of distribution for Y .
$$g(\theta) = X\beta$$ $$θ = g^{-1}(X\beta)$$
Note that we usually use the inverse link function $g^{−1}(X\beta)$ rather than the link function.
Together with the linear predictor this forms the systematic component
